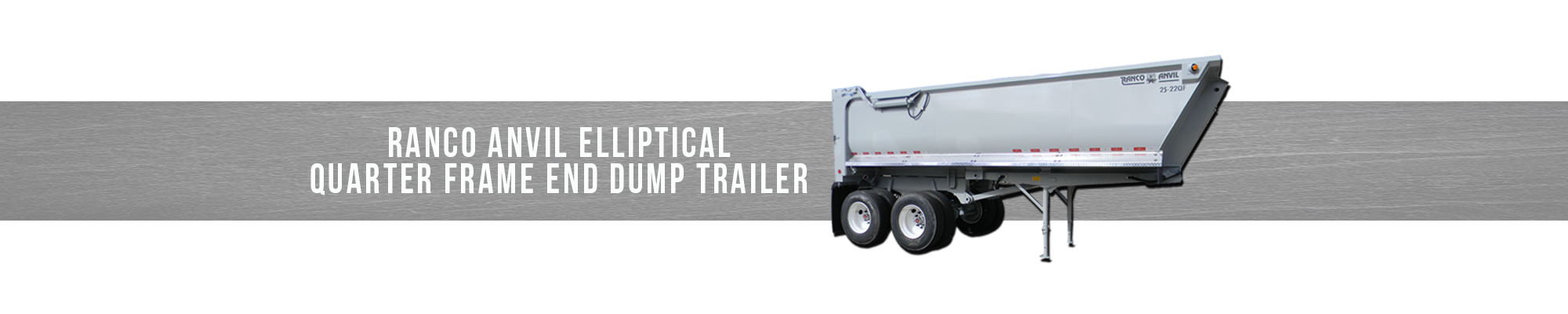

RANCO Anvil Elliptical Quarter Frame End Dump

MODEL SPECIFIC

D25-22QF
Overall Length: 22’ 2”
Body Length: 22′
Capacity: 25 cubic yards
Bridge: 17′ 7″
Cylinder Length: 156″
Dump Angle: 45 degrees
Weight: 13,200 lbs

ED28-24QF
Overall Length: 24’ 2”
Body Length: 24′
Capacity: 28 cubic yards
Bridge: 19′ 7″
Cylinder Length: 170″
Dump Angle: 45 degrees
Weight: 13,800 lbs

SPECIFICATIONS

Body: ¼” -OR- 3/16” AR400 Elliptical 60 degree Slope Front
Suspension: 96” Tandem Axle H900 Single Point or H9700 Spring
Brakes: 6.5 x 7 With Spring Parking, Auto Slacks, 4S-2M ABS System
Axles: 25,000 lbs, 5” Tubular, 71.5 Track
Cylinder: 8” dia, 22ft 4 Stage, Single Acting – 24ft 5 Stage Single Acting
Landing Legs: Telescoping Mounted on Draft Arms
Tires / Rims: 11R x 22.5 w/ 8.25 x 22.5 Steel Hub-Pilot
Lights: Full DOT LED Sealed Lights
Nose: AR400 Same as Body
Gate: AR400 Gravity With Air Cylinder Latches
Ladder: Mounted on Front Bulkhead

Options

Tarps: Customer Spec
Wheels: Aluminum
Fenders: Aluminum Diamond Plate
Gate: Dual Hinge Hi-Lift & Gravity
Asphalt Apron: 8” Weld On or 16” Pop Up
