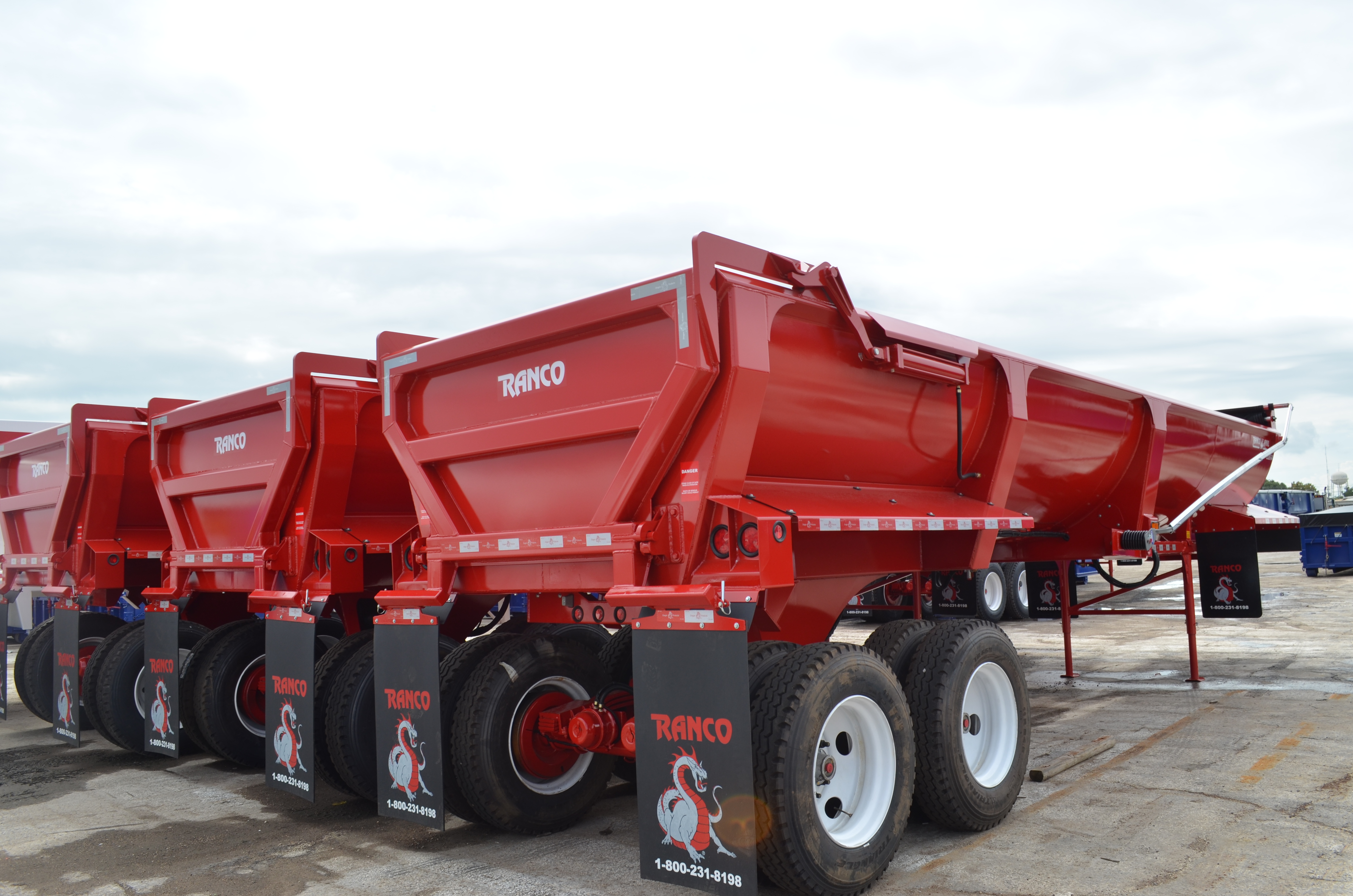

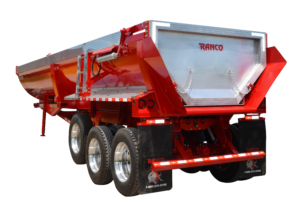

RANCO Lightweight Asphalt Trailer

• Description: 36Ft, 50” High Wall, End Dump Trailer, Quarterframe Style, 96Wide Box And 102Wide Axles
• Type: Halfround Tub Steel Quarterframe End Dump
• Capacity: Not To Exceed Dot Bridge Laws, Distributed
• Commodity: Paving Materials, 26Cuyd Cap, 32Cuyd Capacity At Bangboards
• Length: 36Ft Oal, 34Ft Tub Length
• Box: 3/16” Thk Ar400 Single Sheet Rolled Halfround Panels, Aluminum Diamond Plate Bangboards
• Hoist: 8” Dia, 5 Stage, Single Acting, 265” Stroke
• Welds: All Welds Full Penetration, 70K Wire
• Rear Gate: Alum High Lift Light Weight, Extruded Frame, With Reverse Latching Mechanism
• Coupler: 1/4 “T-1 Steel Pickup Plate, With Bushing Saddles
• Drop Legs: Removeble Not Structural, Mounted To Draft Arms

• Nose: 10Ga Ar400

• Lights: Full Dot Lights, Led Sealed Lights And Harness
• Suspension: 102Wide Tridem, Hutch H900 #44,000, With Third Axle Airride Lift, Lightweight
• Wheels: 10 Hole, Hub Pilot, Steel
• Tires: Standard Cut And Chip
• Brakes: 16 1/2 X 7 With Spring Parking, Auto Slacks, Wabco 4S-2M Abs System
• Apron: Full Rear Frame Encompassed, 24” Max, 16” At Base
• Underride: Dot Compliant, Retractable
• Bushings: All Joints With Greasable Fittings
• Access: Side Access Ladder With Aluminum Flip Up, Front Steps,
• Mud Flaps: A nti Sail
• Tarps: None Supplied, Available Per Customer Request
