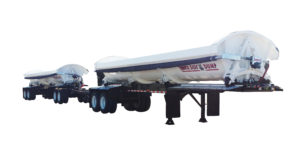

RANCO Side Dump Train Trailers

Description: 35ft tandem w/29ft tub
Type: 4 hinge steel side dump
Capacity: 17 cubic yards level, 24 cubic yard heaped
Commodity: Any, thicker tub suggested on demolition material
Length: 35ft measured at lower frame
Tub: ¼ AR400 panels with 3/16” upper rail structure
Hoist: 5” DIA, single, dual acting 34” stroke cylinder
Welds: All welds full penetration, 70k wire
Hinge points: Steel pinned on UHMW innerbearinged steel rollers
Coupler: T-1 steel pickup plate, with 3/8 structural stiffeners
Legs: Joist 2 speed supports mounted to lower frame
Subframe: Fabricated I beam structure with suspension and lower hinge mounts
Lights: Full DOT lights, led sealed lamps, and circuit breakers in the nosebox
Suspension: 102 wide axle, customer choice, H900 single point, Watson Chalin Airride, or H9700 spring
Wheels: 10 hole, hub pilot, per customer spec
Tires: Per customer spec
Brakes: 16 1/2 x 7 with spring parking, auto slacks, Wabco 4S-2M ABS System
Bushings: All joints with greasable fittings
Mud flaps: Anti-sail
