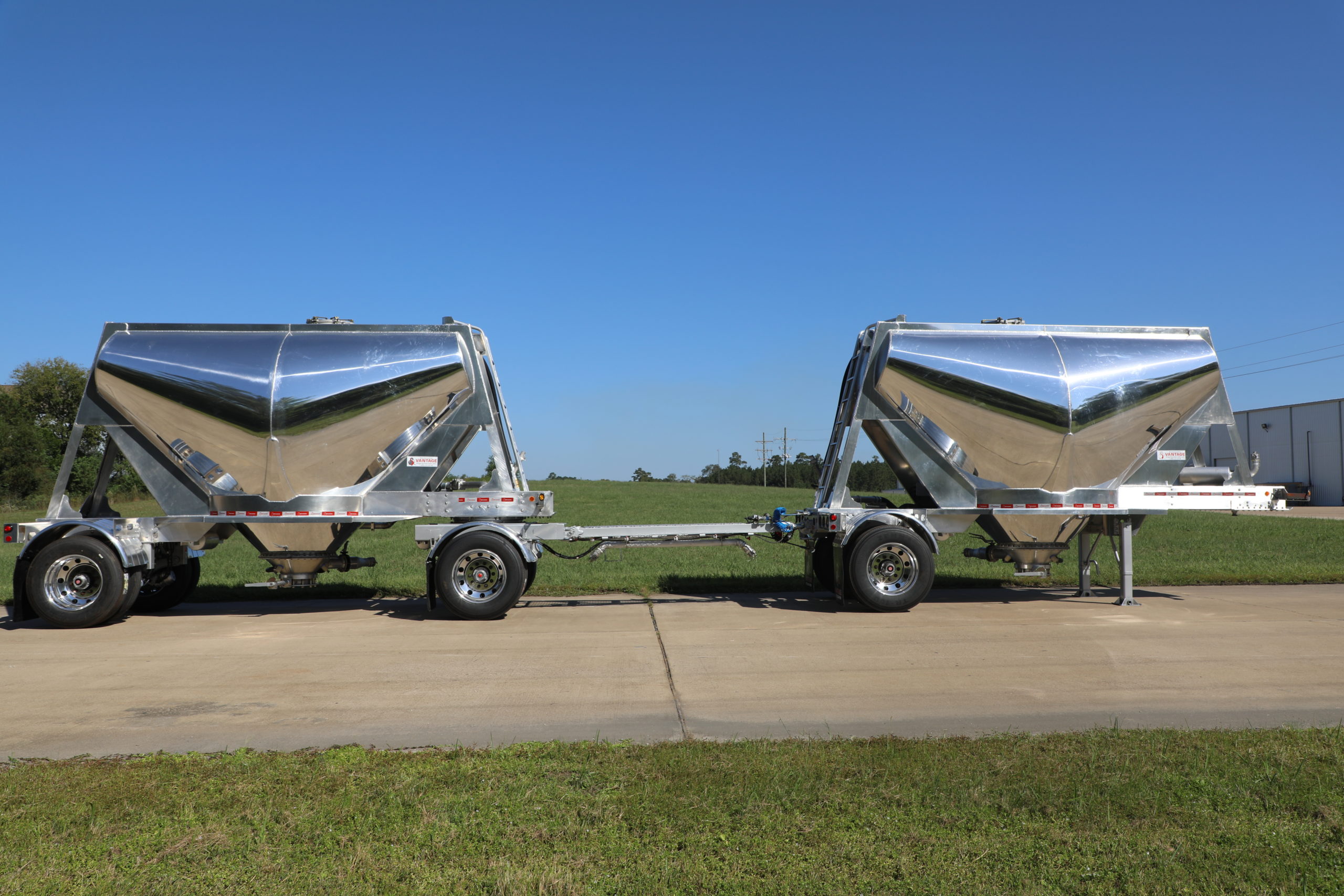

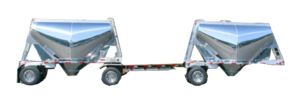

VANTAGE CA Double Aluminum 550 Double-Pneumatic
SPECIFICATIONS
LEAD GENERAL CONSTRUCTION
• Model: Vantage 550 Lead
• Product: Bulk (non-food grade)
• Capacity: 550 Cubic foot
• Wheelbase: 201” (Centerline of king pin to centerline of rear axle)
• Width: 96” (8’-0”) w/ super singles 102” (8”- 6”) w/ dual tires
• Shell: 5454 H-32 Aluminum .185” buffed finish
• Coupler Height: 48” Ground coupler surface
• Top Rails: Formed aluminum
• Heads: 5454-0 .25” x 42.5” x 65.5” Buffed finish elliptical shape
SPECIFICATIONS
LEAD LOADING AND DISCHARGE
• Manhole: Knappco LM1151 20” manhole with 6 CAM over latches
• Silencer: Optional
• Relief: 2” Aluminum mounted in blow down line
LEAD LOADING AND DISCHARGE
• Aeration: 3” Aluminum line controlled with 3” butterfly valve with aluminum body. Aluminum/ bronze disc
• Air supply: 3” Aluminum roadside with front elled upward. One (1) 3” proportioning valve w/ aluminum body, aluminum/bronze disc.
Two (2) 3” solimar check valves-one forward of first hopper and one near front of air inlet with aluminum adapter and cap. Airline runs
to extreme rear of trailer and terminates near pintle hook.
• Blow Down: 3” Aluminum piping w/ 3’ butterfly valve w/ aluminum body, aluminum/ bronze disc
• Top Air: Included
• Discharge: Y configuration with a 4” butterfly valve. Discharge terminates at 45 degree on roadside. Bottom gravity discharge is thru 10”
butterfly valve with extended handle located on curbside.
Options
• Gravity Fed System
