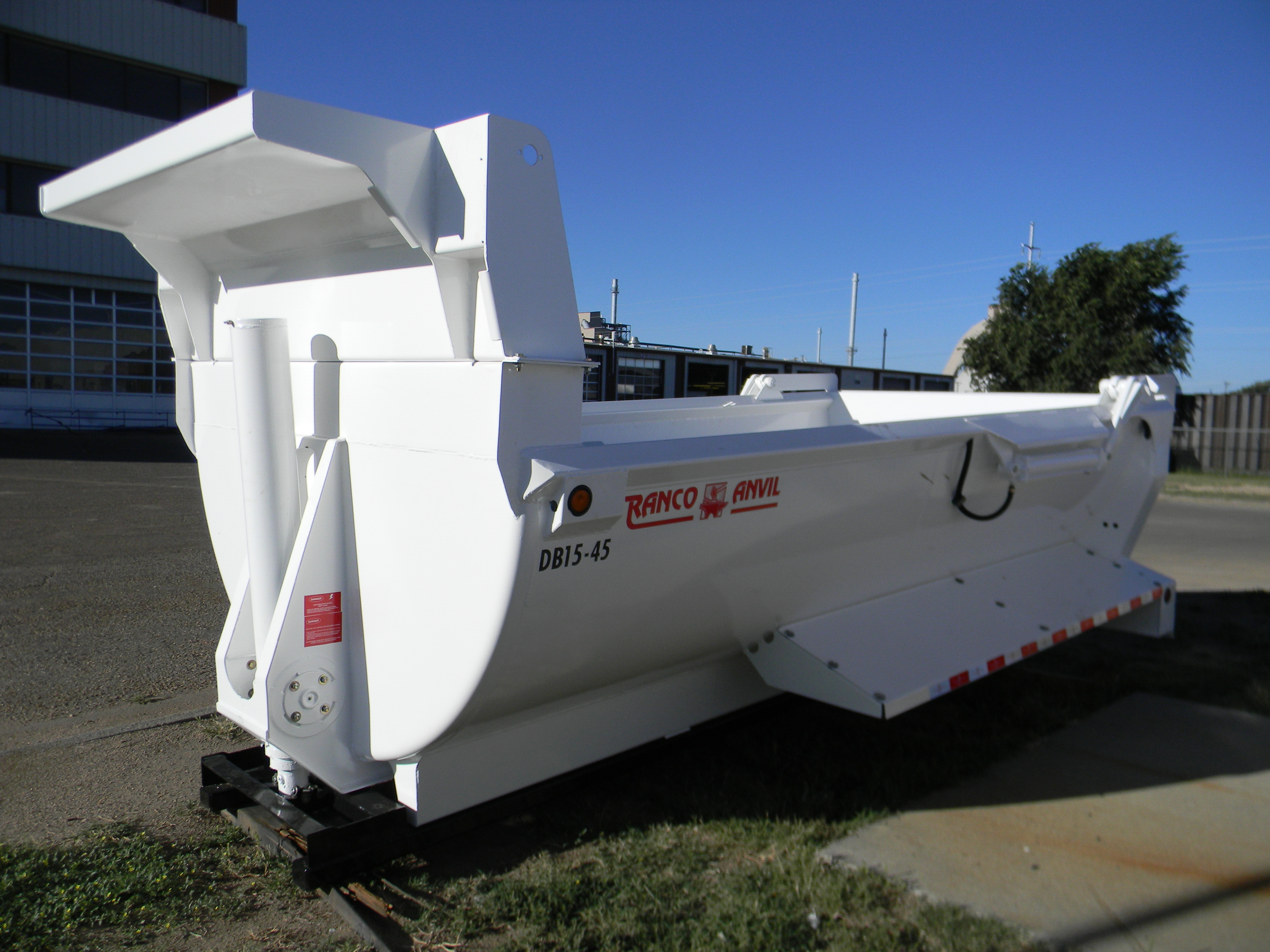

RANCO Anvil Dump Body
Steel Anvil Dump Body
Model Specific
Body Length: 14′
Side Height: 45″
Capacity: 11.3 cubic yards
Body Length: 14′
Side Height: 54″
Capacity: 14 cubic yards
Body Length: 14′
Side Height: 66″
Capacity: 16.8 cubic yards
Body Length: 15′
Side Height: 45″
Capacity: 12 cubic yards
Body Length: 15′
Side Height: 54″
Capacity: 15 cubic yards
Body Length: 15′
Side Height: 66″
Capacity: 18 cubic yards
Body Length: 16′
Side Height: 45″
Capacity: 12.8 cubic yards
Body Length: 17′
Side Height: 45″
Capacity: 13.7 cubic yards
Body Length: 17′
Side Height: 54″
Capacity: 17 cubic yards
Body Length: 17′
Side Height: 66″
Capacity: 21.25 cubic yards
Body Length: 18′
Side Height: 45″
Capacity: 14.58 cubic yards
Body Length: 18′
Side Height: 54″
Capacity: 18 cubic yards
Body Length: 15′
Side Height: 66″
Capacity: 22.5 cubic yards
SPECIFICATIONS
- Half-round Dump Body: 1/4” AR 400 Abrasion Resistant ultra-high strength steel
- Top Rail: 3/8” Hi-Strength Steel tube set on a corner for 100% self shedding
- Cab Guard: Built to customer specs
- Trunion Mounted Multi-Stage Hoist
- Full Length Body to Frame Rails: Tie into the hoist support in the front – 3” x 5” angle iron sub-frame connected to the rear hinge and front cylinder saddle
- Fenders: Rubber mounted – bolt on. Half or Full fender
- Heavy-duty Hinge: Designed to support twice the normal weight carried. Same hinge as the RANCO Quarter Frame Dump Trailers
- Hi-Rise Rear Gate: RANCO Hi-Rise air powered gate clears up to 76” material when in full open position
- Warranty: Full 1 year
OPTIONS
- Combination gravity hinge and barn door gate also available
- Tarps: Flip or slide type
- 54” & 66” High Sides
- 16 Colors Available
LITERATURE
- SPEC SHEET
- MANUAL
