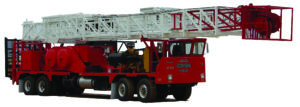

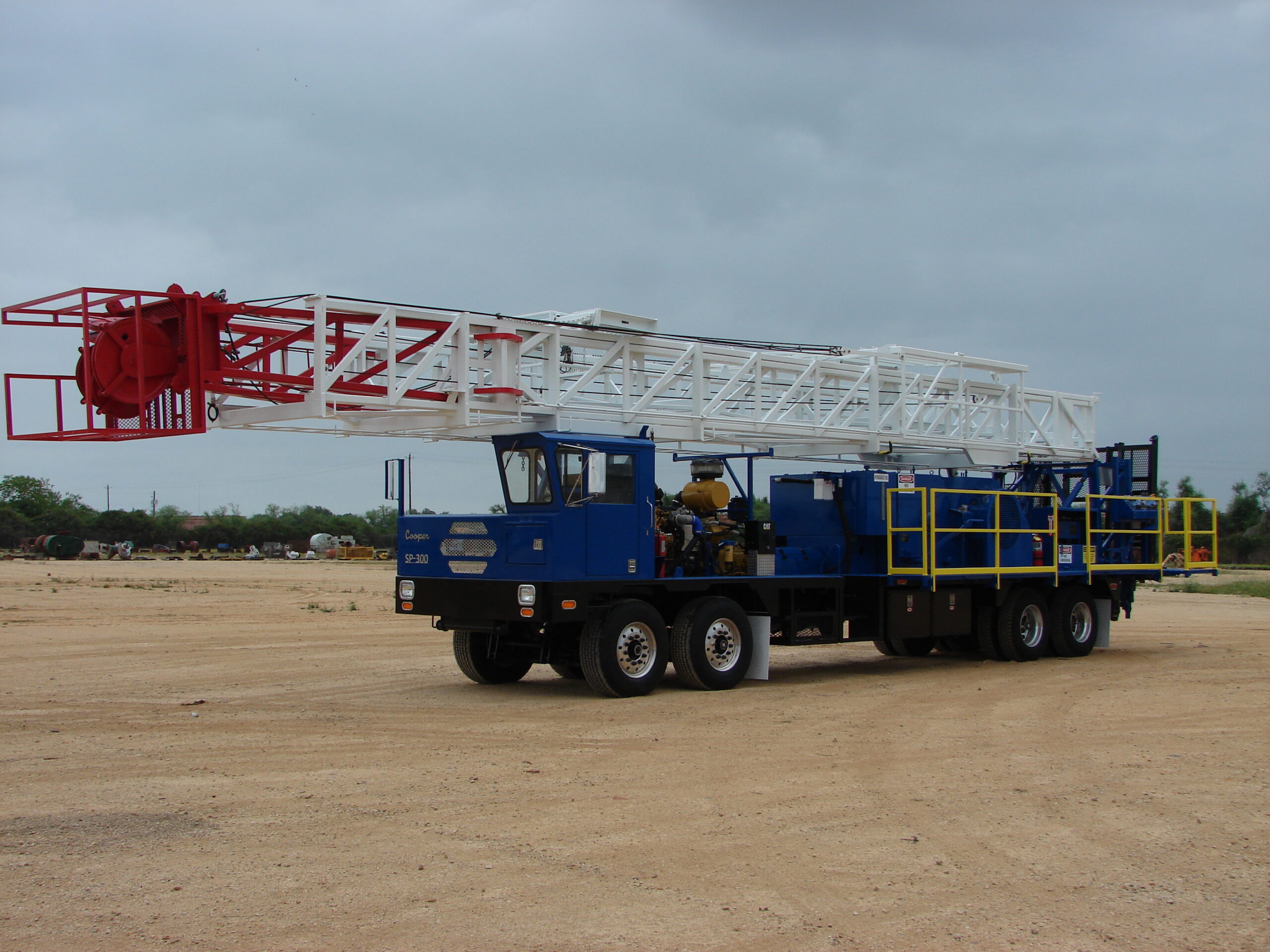

Cooper SP300 Mobile Servicing Rig

Previous

Next

SPECIFICATIONS

COOPER SP300 MOBILE SERVICING RIG SPECIFICATIONS

- Certifications—API 4F
- Mast capacity—150,000 lbs [4-lines]
- Mast height—75’
- Tubing/rods—Single tubing/double rods
- Drawworks:
  - Main Drum—38” dia x 10” wide x 1” grooving with PO224 clutch
  - Sand Drum—38” dia x 8” wide with PO 124 clutch
  - Sand Drum Capacity—14,000’ of 9/16” cable
  - Assist Brake—Air cooled disc brake [optional]
- Drawworks brake system—Conventional band brakes.
- Drawworks brake system cooling—Open circuit splash.
- Engine HP rating—350-400
- Power Flow:
  - Trans to rear drive axles—1710 Spice drive shaft.
  - Trans to RAD gear box—1710 Spicer drive shaft
  - RAD gear box to sand drum—140-1 chain
  - Sand drum to main drum—140-1 chain
- Carrier—4 axle, 2 steer axles and 2 drive axles.
- Maximum travel speed—55 mph
- Service Winch—12,000 lb capacity
- Workfloor—Hydraulic fold and unfold.
