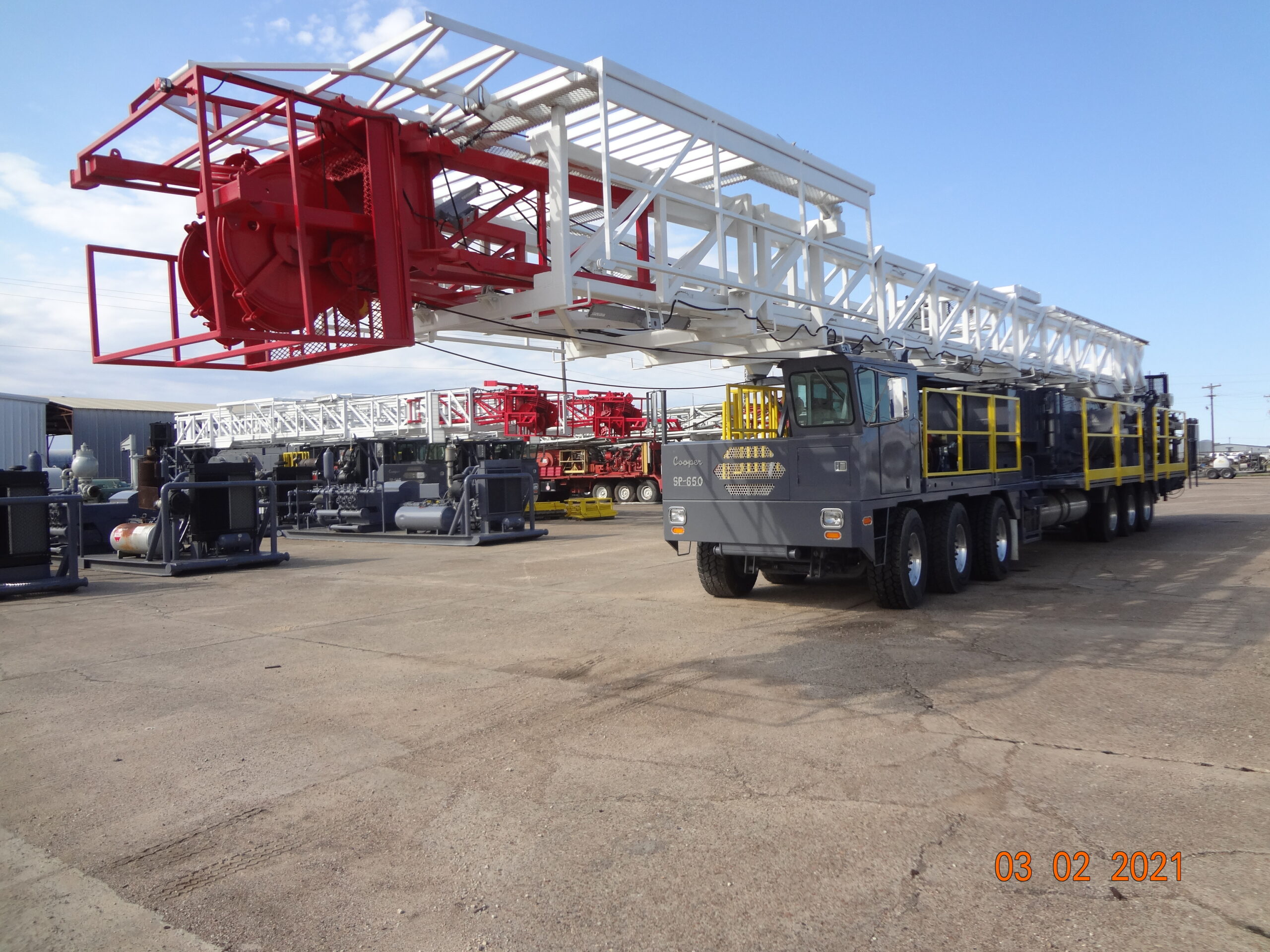

Cooper SP650 Mobile Servicing Rig

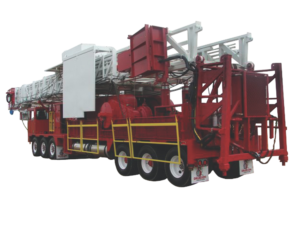

Cooper SP650 Oil Well Service Rig
Rig SPECIFICATIONS
- Certifications—API 4F
- Mast capacity—350,000 lbs [8-lines]
- Mast height—117’
- Tubing/rods—Double tubing/triple rods
- Drawworks: [single drum version available]
- Main Drum—42” dia x 12” wide x 1 1/8” grooving with PO324 clutch
- Sand Drum—42” dia x 8” wide with PO224 clutch
- Sand Drum Capacity—16,000’ of 9/16” cable
- Assist Brake—[two options]
- 202 Hydromatic brake.
- 224 Water Cooled brake. [shaft mounted]
- Drawworks brake system—Conventional band brakes.
- Drawworks brake system cooling—Water circulating system.
- Engine HP rating—550-600
- Power Flow:
- Trans to rear drive axles—1810 Spice drive shaft
- Trans to RAD gear box—1810 Spicer drive shaft
- RAD gear box to sand drum—140-2 chain
- Sand drum to main drum—140-2 chain
- Main drum to hydromatic [if equipped]—100-3 chain
- Carrier—6 axle, 3 steer axles, 2 drive axles, one tag axle.
- Fuel Capacity—180 gallons
- Maximum travel speed—55 mph
- Service Winch—12,000 lb capacity
- Workfloor—Hydraulic fold and unfold.
- Drillers console positions—Deck level to 30’.
